ALLMAN adjustable 1ton 2ton 3ton 5ton Low Profile Geared Trolley for H I beam

FOB Reference Price:Get Latest Price
US $25-380 / Units | 1 Unit/Units ALLMAN Low Profile Geared Trolley (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ALLMAN
Model Number:
GT
Usage:
workshop , warehouse , construction etc
Power Source:
Hand Chain
Sling Type:
Chain
Maximum Lifting Weight:
20ton
Maximum Lifting Height:
12m
Lift Speed:
/
Certification:
CE
Warranty:
12 Months
After-sales Service Provided:
Overseas third-party support available
Product name:
Low Profile Geared Trolley
Capacity:
0.5 -20ton available
Lifting height:
3m or as request
Material of plate:
alloy steel
Wheels Materials:
Cast Iron
Hand Chain:
galvanized
Shaft:
plain or threaded
Available beam type:
H / I beam
Color:
yellow / orange/ blue or as request
Supply Ability
Supply Ability:
5000 Unit/Units per Month ALLMAN Low Profile Geared Trolley
Packaging & Delivery
Packaging Details
seaworthy carton + pallet
Port
Shanghai , Ningbo , Guangzhou or as request
Lead Time :
within 15 days after order confirmation

ALLMAN adjustable 1ton 2ton 3ton 5ton Low Profile Geared Trolley for H I beam

Product Description

ALLMAN Low Profile Geared Trolley (also called Geared Trolley) are available in capacities from 1/2 ton to 20 Tons, Which are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. The multiple spacer washers make beam adjustments quick and easy while the ALLMAN beam trolleys wheels have lubricated for life, double sealed ball bearings making ALLMAN Beam Trolleys the good choice in lifting and material handling equipment .



Product Overview :




Additional Features :



Rated loads from 1/2 to 20Ton . In plain and geared models.

·  Excellent low cost choice for manual and powered hoists.

·  Designed to provide superior performance and long, efficient service.

·  Low rolling effort through standard 6-feet hand chain drop. Other hand chain drops available.

·  Universal hanging clevis accepts most hook mounted hoists.

·  Trolley easily adjusts to fit any beam flange within range of adjustment, up to an 8.7" flange width.

·  Lugs provide additional security to increase operator safety and act as bumpers to protect wheels.

·  Dual tread wheels will fit either tapered or flat beam flange within range of adjustment. Wheels include permanently lubricated, shielded ball bearings for long life and low maintenance.

·  Lifetime warranty

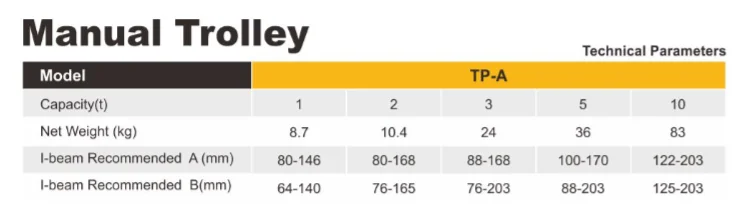

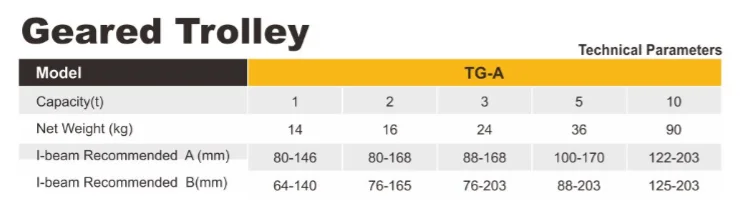

ALLMAN  Plain Trolley and Geared Trolley Technical Paraters :
