220V 380V 440V single speed Chain Sling Type Electric Power Source 5 ton Electric Chain Hoist

FOB Reference Price:Get Latest Price
US $750-1,300 / Units | 1 Unit/Units 5ton electric chain hoist (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Model Number:
construction , workshop , warehouse , mining etc
Power Source:
Sling Type:
Maximum Lifting Weight:
Maximum Lifting Height:
3/6/9/12 m , up to 50m as request
Lift Speed:
single /dual speed
Product name:
5ton electric chain hoist
3phase ,22OV ~690V ,50/60Hz ,3P
Control method:
pendant control/ wireless remote control
Hoist body material:
high strength aluminum alloy
Mechanical side magnetic / electronic magnetic braking
Working grade:
1Am / M4
Protection grade:
Traveling speed:
11m/min or 21m/min
yellow / orange/ blue / as request
OEM service:
12 Months
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
1000 Unit/Units per Month 5ton electric chain hoist
Packaging & Delivery
Packaging Details
seaworthy plywood cases .
Shanghai , Ningbo , Guangzhou or as request
Lead Time :
within 15 days after order confirmation

Get the Best Electric Chain Hoist , Electric Wire Rope Hoist , Cranes from ALLMAN INDUSTRY

Product Description

 Electric hoist is a very important part of overhead lifting and material handling systems , including electric chain hoist and electric wire rope hoist . With advantages of safety , high-efficiency , durability , manpower saving etc, electric hoists are widely used in industrial construction , workshop , warehouse, shipyard , port, mining , railway construction etc .

ALLMAN INDUSTRY , as a professional supplier of lifting and material handing equipment , can provide Electric Chain Hoist from capacity 250kg up to 50 Ton capacity to the worldwide industrial lifting market. But practically speaking, electric chain hoists are more economical between 250kg and 5 ton capacity. Wire Rope Hoists are more widely used for capacity up 5ton .We always do our very best to meet the customers demands by supplying only the very best quality industrial Electric Hoists.


ALLMAN Electric hoist overview ,  three phase electric chain hoist, hook type / motorzied trolley mounted type :

 ALLMAN INDUSTRY Electric Chain Hoists come standard with the following features:

· Brake System : mechanical type side magnetic braking or electronic magnetic braking .

· Upper and Lower Limit Switch

· Push Button Controls

· Electric Control Panel Available and wireless remote control available for all motions

· Heavy-Duty Hoist Motor rated for 30-minute duty

· Load Sheave / Chain Guide

· Grade 80 load chain / FEC Japan chain

· Forged carbon steel hook with a heavy-duty hook latch

· Chain container

· Gear box with alloy steel helical and spur gear reduction


ALLMAN 0.25ton to 5ton  single speed /dual speed Electric Chain Hoist Technical Paraters :

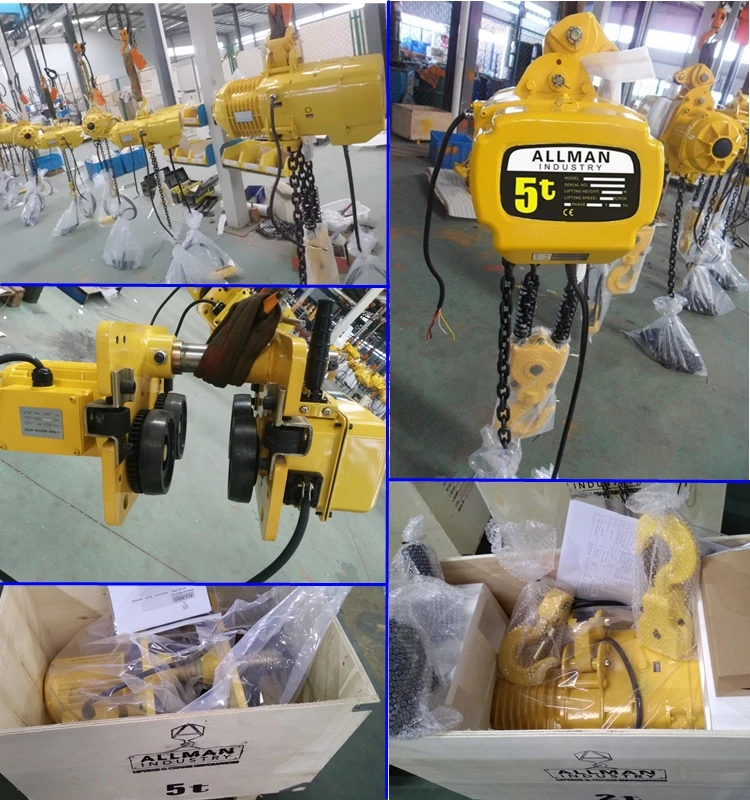

Detailed Images



ALLMAN electric chain hoist packing & shipping , hoist and trolley be packed seperately
