FEC Japan chain sling type electric hoist crane 5ton construction hoist cranes

FOB Reference Price:Get Latest Price
US $750-1,300 / Units | 1 Unit/Units electric construction hoist crane (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ALLMAN
Model Number:
AMEH05-02S
Usage:
Construction Hoist
Power Source:
Electric
Sling Type:
Chain
Maximum Lifting Weight:
5ton
Maximum Lifting Height:
3m as standard , up to 50m as request
Lift Speed:
2.7m/min
Certification:
CE
Warranty:
12 Months
After-sales Service Provided:
Overseas third-party support available
Product name:
electric construction hoist crane
Motor:
3phase ,22OV ~690V ,50/60Hz ,3P
Control method:
pendant control/ wireless remote control
Hoist body material:
high strength aluminum alloy
Braking system:
Mechanical side magnetic brake
Working class:
1Am / M4
Protection grade:
IP54
Traveling speed:
11m/min
Color:
yellow / orange/ blue / as request
OEM service:
available
SupplyAbility
SupplyAbility:
Unit/Units per Month electric construction hoist crane
Packaging & Delivery
Packaging Details
seaworthy plywood cases .
Port
Shanghai , Ningbo , Guangzhou or as request
Lead Time :
within 15 days after order confirmation

Get the Best Electric Chain Hoist , Electric Wire Rope Hoist , Cranes from ALLMAN INDUSTRY

Product Description

 Electric hoist is a very important part of overhead lifting and material handling hoisting and crane systems , including electric chain hoist and electric wire rope hoist . With advantages of safety , high-efficiency , durability , manpower saving etc, electric hoists are widely used in industrial construction , workshop , warehouse, shipyard , port, mining , railway construction etc .

ALLMAN INDUSTRY , as a professional supplier of lifting and material handing equipment , can provide Electric Crane Hoist from capacity 250kg up to 50 Ton capacity to the worldwide industrial lifting market. But practically speaking, electric chain hoists are more economical between 250kg and 5 ton capacity. Wire Rope Hoists are more widely used for capacity up 5ton .We always do our very best to meet the customers demands by supplying only the very best quality industrial Electric Hoists.



ALLMAN Electric crane hoist overview ,  three phase electric chain hoist, hook type / motorzied trolley mounted type :

 ALLMAN INDUSTRY Electric Chain Hoists come standard with the following features:

· Brake System : mechanical type side magnetic braking or electronic magnetic braking .

· Upper and Lower Limit Switch

· Push Button Controls

· Electric Control Panel Available and wireless remote control available for all motions

· Heavy-Duty Hoist Motor rated for 30-minute duty

· Load Sheave / Chain Guide

· Grade 80 load chain / FEC Japan chain

· Forged carbon steel hook with a heavy-duty hook latch

· Chain container

· Gear box with alloy steel helical and spur gear reduction

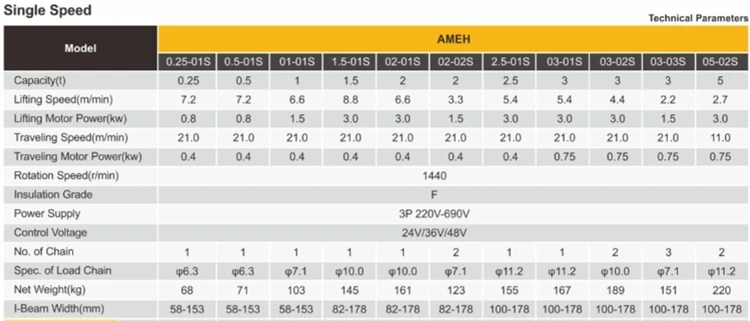

ALLMAN 0.25ton to 5ton  single speed /dual speed Electric Chain Hoist Technical Paraters :





Detailed Images





ALLMAN electric chain hoist packing & shipping , hoist and trolley be packed seperately
