ALLMAN 1ton 20' lift TELECRANE wireless remote control electric chain hoist

FOB Reference Price:Get Latest Price
US $800-1,000 / Units | 1 Unit/Units wireless remote control electric chain hoist (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ALLMAN
Model Number:
AMEH01-01
Usage:
Construction Hoist
Power Source:
Electric
Sling Type:
Chain
Maximum Lifting Weight:
1ton
Maximum Lifting Height:
3/6/9/12 m , up to 50m as request
Lift Speed:
single speed 6.6m/min , dual speed 2.3/6.9m/min
Certification:
CE
Warranty:
12 Months
After-sales Service Provided:
Overseas third-party support available
Product name:
wireless remote control electric chain hoist
Motor:
3phase 22OV ~690V ,50/60Hz ,3P
Control method:
pendant cable control / remote control
Hoist body material:
high strength aluminum alloy
Braking system:
Mechanical side magnetic
Hooks:
forged hook with safety tongue
Load Chain:
G80 alloy steel / FEC Japan chain
Hand switch:
4 directions /6 directions
Chain container:
canvas bag or steel bag
Color:
Yellow , Orange , Blue , as requst
Supply Ability
Supply Ability:
1000 Unit/Units per Month wireless remote control electric chain hoist
Packaging & Delivery
Packaging Details
seaworthy plywood cases .
Port
Shanghai , Ningbo , Guangzhou or as request
Lead Time :
within 15 days after order confirmation

Get the Best Electric Chain Hoist , Electric Wire Rope Hoist , Cranes from ALLMAN INDUSTRY

Product Description

 Electric hoist is a very important part of overhead lifting and material handling systems , including electric chain hoist and electric wire rope hoist . With advantages of safety , high-efficiency , durability , manpower saving etc, electric hoists are widely used in industrial construction , workstation monorail crane  , warehouse, shipyard , port, mining , railway construction etc . All the electric chain hoist and wire rope hoist can be controled both by pendant cable and wireless remote , it's very convenient to use wireless remote to control hoist working at anywhere within 50m distance .



ALLMAN INDUSTRY , as a professional supplier of lifting and material handing equipment , can provide Electric Chain Hoist from capacity 250kg up to 50 Ton capacity to the worldwide industrial lifting market. But practically speaking, electric chain hoists are more economical between 250kg and 5 ton capacity. Wire Rope Hoists are more widely used for capacity up 5ton .We always do our very best to meet the customers demands by supplying only the very best quality industrial Electric Hoists considering different site situation: suspension electric chain hoist , hoist with (monorail )  beam trolley etc.



Suspension Configuration

Electric chain hoists are available in:

· Hook mounted type ,when just 2 directions up/down function required .

· With manual trolley / motorized trolley  , when cargoes have to be moved East and West direction .

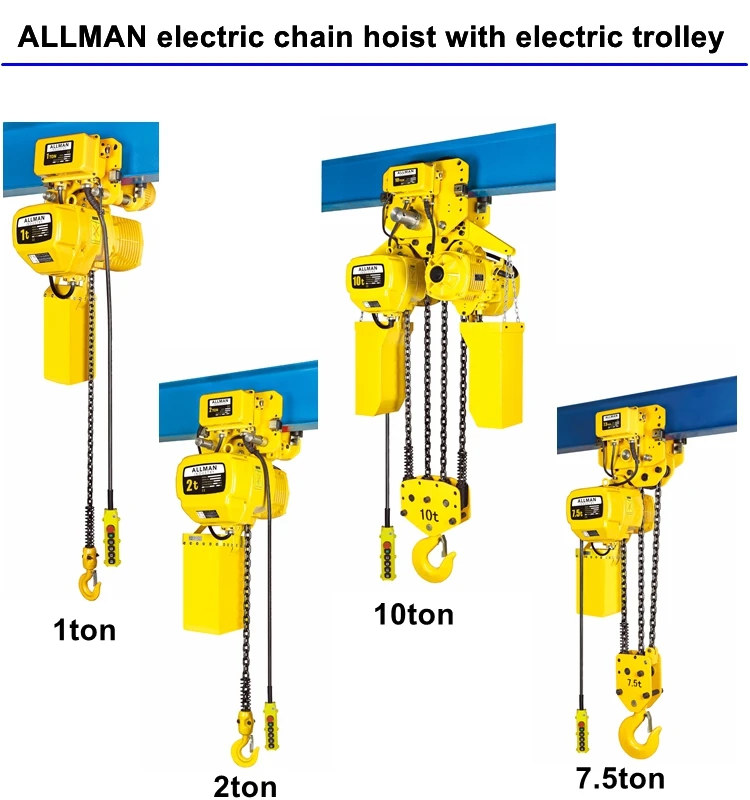

ALLMAN Electric hoist overview ,  three phase electric chain hoist, hook type / motor driven trolley mounted type :

.jpg

 ALLMAN INDUSTRY Electric Chain Hoists come standard with the following features:

· Brake System : mechanical type side magnetic braking or electronic magnetic braking .

· Upper and Lower Limit Switch

· Push Button Controls

· Electric Control Panel Available and wireless remote control available for all motions

· Heavy-Duty Hoist Motor rated for 30-minute duty

· Load Sheave / Chain Guide

· Grade 80 load chain / FEC Japan chain

· Forged carbon steel hook with a heavy-duty hook latch

· Chain container

· Gear box with alloy steel helical and spur gear reduction

. Wireless remote is optional as customer's request



ALLMAN 0.25ton to 5ton  single speed /dual speed Electric Chain Hoist Technical Paraters :

 5t.jpg5T .jpg



Detailed Images
2ton hoist .jpg






ALLMAN electric chain hoist with beam trolley packing & shipping , hoist and trolley be packed seperately

package and shipping.png.jpg
