220V 380V 440V electric power source chain sling type construction lifting equipment hoisting

FOB Reference Price:Get Latest Price
US $400-1,300 / Units | 1 Unit/Units construction lifting equipment hoisting (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ALLMAN
Model Number:
AMEH series
Usage:
Construction Hoist
Power Source:
Electric
Sling Type:
Chain
Maximum Lifting Weight:
0.5t to 50ton
Maximum Lifting Height:
standard 3m , up to 50m as request
Lift Speed:
single /dual speed
Certification:
CE
Warranty:
12 Months
After-sales Service Provided:
Overseas third-party support available
Product name:
construction lifting equipment hoisting
Power supply:
3phase 220V ~690V ,
Control method:
wireless remote / pendant cable control
Hoist body material:
high strength aluminum alloy
Braking system:
Mechanical side magnetic brake
Hooks:
forged hook with safety latches
Load Chain:
Chinese G80 alloy steel chain / FEC Japan chain
Working grade:
M4
Protection grade:
IP54/IP55
Color:
Orange , Yellow , Red , Blue etc
Supply Ability
Supply Ability:
1000 Unit/Units per Month construction lifting equipment hoisting
Packaging & Delivery
Packaging Details
seaworthy plywood cases .
Port
Shanghai , Ningbo , Guangzhou or as request
Lead Time :
within 15 days after order confirmation

220V 380V 440V electric power source chain sling type construction lifting equipment hoisting

Product Description

 Electric hoist is a very important part of overhead crane ,  lifting and material handling equipment  , including electric chain hoist and electric wire rope hoist . With advantages of safety , high-efficiency , durability , manpower saving etc, electric hoists are widely used in industrial construction lifting , workshop lifting  , warehouse material handling , shipyard , port, mining , railway construction etc . All the electric chain hoist and wire rope hoist can be controled both by pendant cable and wireless remote , it's very convenient to use wireless remote to control hoist working at anywhere within 50m distance .



ALLMAN INDUSTRY , as a professional supplier of lifting and hoisting equipment , can provide Electric Chain Hoist from capacity 250kg up to 50 Ton capacity to the worldwide industrial lifting market. But practically speaking, electric chain hoists are more economical for capacity 0.5ton , 1ton , 2ton  3ton and 5ton . Wire Rope Hoists are more widely used for capacity up 5ton .We always do our very best to meet the customers demands by supplying only the very best quality industrial hoisting equipment considering different site situation: suspension electric chain hoist , hoist with  trolley etc.



Suspension Configuration

Electric chain hoists are available in:

· Hook mounted type ,when just 2 directions up/down function required .

· With manual trolley / motorized trolley  , when cargoes have to be moved East and West direction .

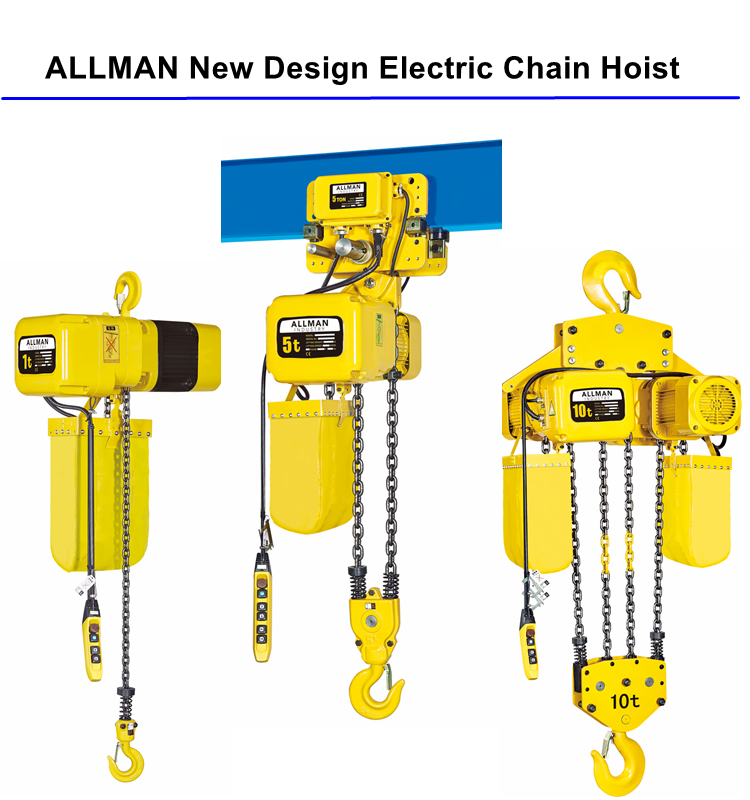

ALLMAN construction lifting equipment hoisting overview ,  three phase ,hook type / motor driven trolley mounted type :

ER2 ____.png

 ALLMAN INDUSTRY  Electric Chain Hoist come standard with the following features:

· Brake System : mechanical type side magnetic braking or electronic magnetic braking .

· Upper and Lower Limit Switch

· Push Button Controls

· Electric Control Panel Available and wireless remote control available for all motions

· Heavy-Duty Hoist Motor rated for 30-minute duty

· Load Sheave / Chain Guide

· Grade 80 load chain / FEC Japan chain

· Forged carbon steel hook with a heavy-duty hook latch

· Chain container

· Gear box with alloy steel helical and spur gear reduction

. Wireless remote control is optional as customer's request



ALLMAN 0.25ton  0.5ton 1ton 2ton 3ton 5ton  single speed /dual speed Electric Chain Hoist Technical Paraters :

 5t.jpg5T .jpg



Detailed Images
2ton hoist .jpg
02.jpg ALLMAN electric chain hoist with trolley packing & shipping , hoist and trolley be packed seperately :

package and shipping.png.jpg
