ALLMAN high performance workshop electric motor driven mobile gantry crane 5ton 10ton 15ton

FOB Reference Price:Get Latest Price
US $5,000-18,000 / Units | 1 Unit/Units workshop mobile gantry crane (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Feature:
Gantry Crane
Condition:
New
Application:
Widely
Rated Loading Capacity:
5 - 15 Ton
Rated Lifting Moment:
150KN
Max. Lifting Load:
15 Ton
Max. Lifting Height:
3-20 Meters
Span:
6-33m
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ALLMAN
Model Number:
MH model
Certification:
ISO
Warranty:
12 Months
After-sales Service Provided:
Overseas third-party support available
Product name:
workshop mobile gantry crane
Crane type:
single girder gantry crane
Power Source:
3-Phase , 220, 380/440V , 50 /50 Hz
Main electrical parts:
Schneider or similar quality level
Lifting mechanism:
European Wire Rope Hoist or CD/MD1
Traveling motor:
Nord , Sew , or Chinese made top quality
Control Method:
Remote Control/ carbin control
Crane feature:
Steel Box structure
Color:
Yellow / as customer request
Supply Ability
Supply Ability:
500 Unit/Units per Year workshop mobile gantry crane
Packaging & Delivery
Packaging Details
nude pakage for structure , plywood case for spare parts .
Port
Shanghai , or any other port in China
Lead Time :
one month after confirmation

ALLMAN high performance workshop electric motor driven mobile gantry crane

Product Description

Gantry crane is a type of crane that is supported by one (semi gantry) or two legs. Gantry cranes are typically wheeled , which can run on rails or floor . A workstation or portable gantry crane is a very versatile gantry. The height on many models may be adjustable . Since it is usually wheeled,  it is easy to move around to reach every corner of workshop . Workstation/portable gantries by manual pushed can range from 1 - 5 tons. We can also design and manufacture much heavier duty rail mounted electric traveling gantry crane which capacity over 5tons , single girder or double girder with electric end truck traveling on the rail .



ALLMAN Gantry Cranes are unsurpassed in design strength, durability, and quality construction :



1/ Precision tolerances and welding ensure component alignment and operational stability.

2/ We use standardized I-beams.

3/ All nuts, bolts, and pins are plated for corrosion resistance, and all gantries are painted safety yellow or orange .

4/ Outdoor use options available, including exterior coatings with high protection grade motors .

5/ Easy to install and relocate.



workshop mobile gantry crane overview :

gantry crane.jpg

ALLMAN workshop mobile gantry crane features :

Basic information

capacity from 3ton to 20ton

span from 6m-30m

lifting height from 3m to 20m

Lifting Mechanism European M5 working grade wire rope hoist
Application be widely used in workshop , warehouse , goods yard , railway construction , ship building etc , indoor or outdoor usage .

Control method

Pendant control with hand switch

remote control

cabin control

Painting

primer and finish painting , good rust proof .

Color: yellow, orange , or as request .

Average thickness: about 100 microns

Safety Guaranteewith overload protection ,

Crane traveling limit switch, Voltage

lower protection function, Emergency stop system, current overload

protection system

Service design , manufacturing , technical support , installation guide , after-sales service .



Detailed Images

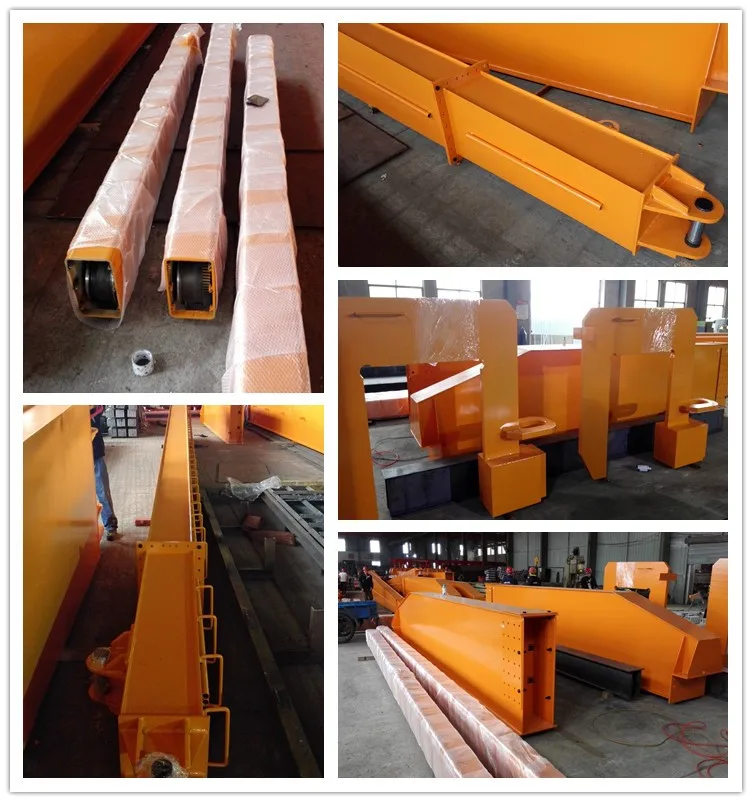

workshop mobile gantry crane  production :


gantry crane .jpg

Lifting mechanism , European model wire rope hoist :

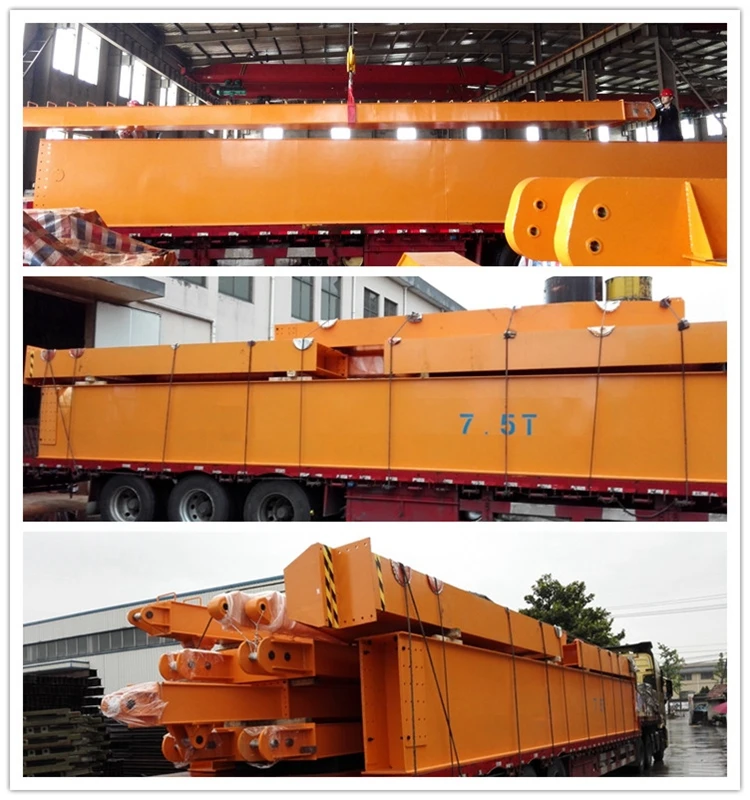

Package and shipping :

gantry crane packing .jpg



quotation elements

 If you need gantry crane , pls provide bellow information for design and quotation :



1. Capacity ?

2. Manual pushed or electric motor driven gantry crane  ?

3 . Span length ?

4.  Traveling length if you need rail mounted type gantry crane or semi -gantry crane .

5.  Lifting height ?

6.  Used indoor or outdoor ?

7. Working situation required ?



The more information you supply , the faster we can offer you the best solution .
