ALLMAN heavy duty double hooks 20t/ 5t 30t/10t double girder electric motor driven lifting wire rope hoist

FOB Reference Price:Get Latest Price
US $4,000-15,000 / Sets | 1 Set/Sets electric motor driven lifting wire rope hoist (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ALLMAN
Model Number:
EDWRH
Usage:
Construction Hoist
Power Source:
Electric
Sling Type:
Wire Rope
Maximum Lifting Weight:
63ton
Maximum Lifting Height:
6/9/12/18m ,or customized
Lift Speed:
dual speed
Certification:
ISO, CE
Warranty:
1 Year
After-sales Service Provided:
Overseas third-party support available
Product name:
electric motor driven lifting wire rope hoist
Hoist structure:
double girder
Control method:
wireless remote
Motor protection grade:
IP54
Electric cabinet protection grade:
IP55
Lifting & traveling motor:
ABM / Chinese made optional
Overhead protection:
yes
Overload protection:
yes
Inverter brand:
Schneider / Yaskawa
Electric components brand:
Schneider
SupplyAbility
SupplyAbility:
Set/Sets per Month electric motor driven lifting wire rope hoist
Packaging & Delivery
Packaging Details
Exporting Plywood Case
Port
Shanghai , Ningbo , Guangzhou or as request
Lead Time :
depend on quantity , within 25 days as usual
Video Description

ALLMAN heavy duty double hooks  20t/ 5t  30t/10t double girder electric motor driven lifting wire rope hoist

Product Description

ALLMAN Europe model double girder electric motor driven lifting wire rope hoist  overview & core components :



ALLMAN Europe model single / double girder electric motor driven lifting wire rope hoist  advantages :

1. beautiful appearance ,  with epoxy paint , much better for corrosion resistance .

2.  hoist with housing , which protect the coiling block , rope guide , and wire rope , not be effected by the dust in air , then make hoist working much more time .

3. hoist motor with Aluminum alloy Shell , which make hoist light weight , easy for heat release .

4. hoist motor with overheat protection , to strengthen the protection of motor .

5. electromagnetic brake , no need maintenance in service life , which reduce much cost for maintenance .

6. with small and more reasonable structure , saving the lifting space , which may reduce much cost of factory construction and power usage .

7. with high configuration , its working grade reach M5 / M6 if customer require it in particular working environment .

8. Motor protection grade: IP54; Brake system protection grade:IP65; Insulation grade:F

9.AC contactor: Schneider . Inverter : Schneider / Yaskawa / Chinese brand top quality .

10.Europe imported high strength wire rope; Strength grade:2160MPa.

11.T grade forged hook

12.Overload limiter inluded .

13.OEM & customized specification available .



 All the Top quality components including : lifting motor system , traveling motor system ,  Schneider brand electric components , Europe imported wire rope , high strenght hooks etc , make ALLMAN electric wire rope hoist with high configuration , working grade reach M5 or much higher M6 .



Europe model double girder electric motor driven lifting wire rope hoist technical parameters :

Load capacity(kg)FEM ISOLifting height(m)Lifting speed (m/min)Traveling speed(m/min)

2000

2mM56/9/12/180.8/5.05~20
32002mM56/9/12/180.8/5.05~20
50002mM56/9/12/180.8/5.05~20
63001AmM46/9/12/180.8/5.05~20
80003mM66/9/12/180.8/5.05~20
100002mM56/9/12/180.8/5.05~20
100003mM66/9/12/180.6/4.05~20
125001AmM46/9/12/180.8/5.05~20
125002mM56/9/12/180.6/4.05~20
160002mM56/9/12/180.6/4.05~20
200001AmM46/9/12/180.66/4.05~20
200002mM56/9/12/18

0.53/3.4

5~20
250001AmM46/9/12/18

0.53/3.4

5~20
250002mM56/9/12/18

0.8/3.3

5~20
320002mM56/9/12/180.8/3.35~20
320002mM56/9/12/180~4.95~20
400001AmM46/9/12/180~4.95~20
500002mM56/9/12/180~3.25~20
630001amM46/9/12/180~3.25~20
Detailed Images

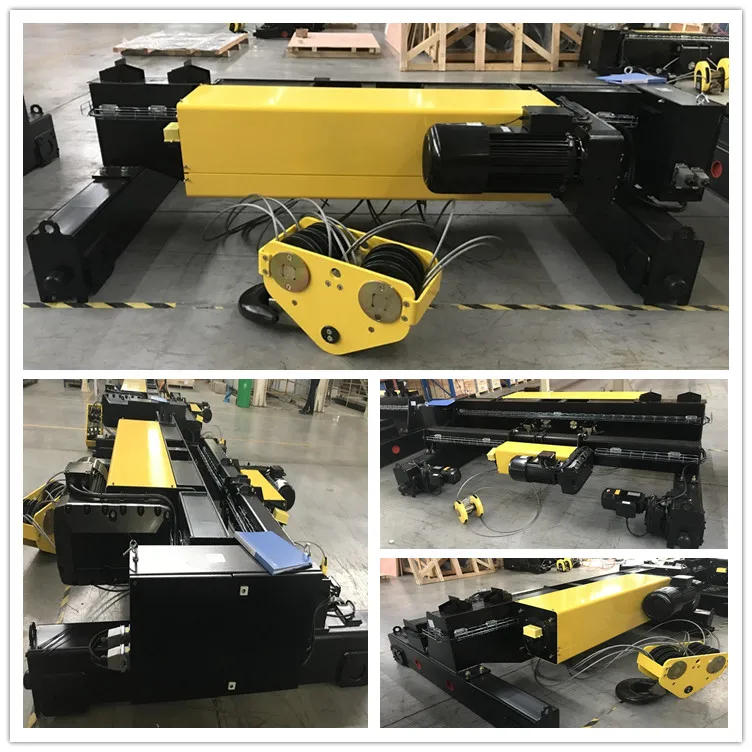

ALLMAN Europe model double girder electric motor driven lifting wire rope hoist production and core spare parts for your reference :
