ALLMAN New Design hot sales 3 bearings overload protection manual lifting chain hoist

FOB Reference Price:Get Latest Price
US $27.5-350 / Units | 10 Unit/Units manual lifting chain hoist (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ALLMAN
Model Number:
HSZ-K
Usage:
Construction Hoist
Power Source:
Hand Chain
Sling Type:
Chain
Maximum Lifting Weight:
0.5ton -30ton
Maximum Lifting Height:
3m/6m/9m or as request
Lift Speed:
/
Certification:
CE
Warranty:
12 Months
After-sales Service Provided:
Overseas third-party support available
Product name:
manual lifting chain hoist
Hoist body:
high strength alloy steel
Load chain:
G80 chain / G100 chain
Hand chain:
galvanized chain
Upper and low hook:
casted and heat treated alloy steel
Overload protection:
optional
Pawls No.:
2 pawls
Color:
Yellow, Orange , Blue or as request
Package:
carton for each hoist+ pallet
OEM service:
available
Supply Ability
Supply Ability:
5000 Unit/Units per Month manual lifting chain hoist
Packaging & Delivery
Packaging Details
exporting carton package + pallet
Port
Shanghai , Ningbo , Guangzhou or as request
Lead Time :
around 20 days after order confirmation

ALLMAN New Design hot sales 3 bearings overload protection manual lifting chain hoist

Product Description

ALLMAN INDUSTRY , which is a professional supplier of lifting and material handing equipment , can provide electric chain hoist , electric wire rope hoist , cranes , manual chain block , lever hoist , beam trolleys and various kinds of electrical and manual lifting tools .



ALLMAN  kito , vital , yale models manual lifting chain hoist  for your options :



.jpg



 ALLMAN manual lifting chain hoist features :

1. capacity from 250kg to 30ton .

2. lifting height 3meters or as customers' request .

3. hoist covers are made of high strength alloy steel , and impact-resistance, well protect the inside parts .

4. upper and lower hooks are made of high strength casted alloy steel and heat treated , which prevent the hooks breaking even when overloading , with safety latch .

5. Load chain : G80/G100 high strength alloy steel .

6. overload protection is optional .



ALLMAN  Kito Yale Vital model manual lifting chain hoist technical parameters :

Model
Capcaity (ton)0.511.5235101520
Standard Lifting height(m)333333333
Running Test Load (ton)0.751.52.2534.57.51522.530
Load Chain Dia.
(mm)
Columns111112468
Dia567.181010101010
Effort to Required to Lift Max.(N)249284380343372372382378389×2
Net Weight (kg)9.312.216.519.53241.175.7135192
Dimension (mm)A132132173175205189189200200
B148148196210255280463718840
C345376442470548688765900950
D3535455055657595106
K232333353945547182
Package Size(cm×cm×cm)37×17×1832×20×2137×20×2437×20×2437×25×2440×26×2854×35×4788×40×6588×40×65
Extra Weight per Meter of Extra Lift (kg)1.51.82.162.43.25.49.814.719.6

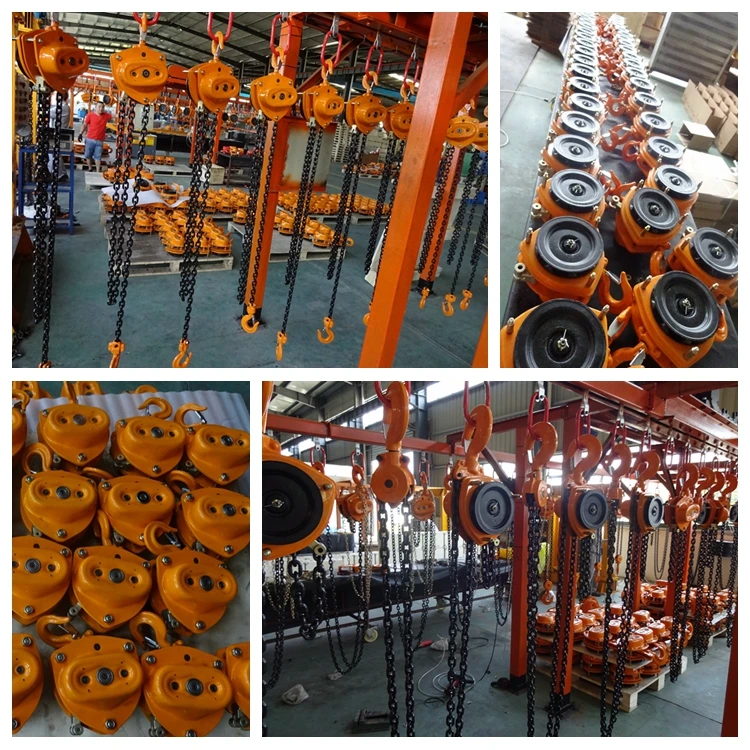

Detailed Images

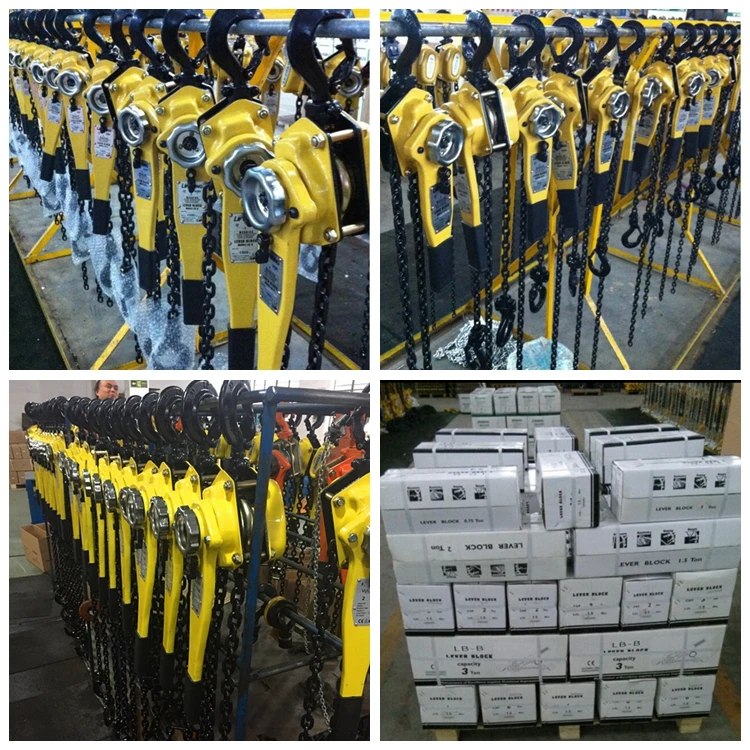

Different models lever hoist and hand chain block for your reference, you can choose your favorate ones :



lever block.jpgA 1.jpgK .jpg
