10ton overload protection FEC Japan chain hook mounted electric chain hoist with manual monorail trolley

FOB Reference Price:Get Latest Price
US $1,700-1,800 / Units | 1 Unit/Units hook mounted electric chain hoist (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ALLMAN
Model Number:
AMEH10-04S
Usage:
Construction Hoist
Power Source:
Electric
Sling Type:
Chain
Maximum Lifting Weight:
250kg to 10ton
Maximum Lifting Height:
3/6/9/12m , or customized
Lift Speed:
2.7m/min
Certification:
CE
Warranty:
12 Months
After-sales Service Provided:
Overseas third-party support available
Product name:
hook mounted electric chain hoist
Motor supply:
220V ~690V , 3P
Lifting motor power:
3.0kw*2
Control method:
pendant hand switch/ remote control optional
Contactor brand:
Schneider
Loading chain:
FEC Japan chain / Chinese G80 chain
Brake system:
mechanical magnet braking
Working grade:
M4
Protection grade:
IP54
OEM service:
yes
Supply Ability
Supply Ability:
1000 Unit/Units per Month hook mounted electric chain hoist
Packaging & Delivery
Packaging Details
seaworthy plywood cases .
Port
Shanghai , Ningbo , Guangzhou or as request
Lead Time :
within 15 days after order confirmation
Video Description

10ton overload protection FEC Japan chain hook mounted electric chain hoist with manual monorail trolley

Product Description

 Electric hoist is a very important part of overhead crane ,  lifting and material handling equipment  , including electric chain hoist and electric wire rope hoist . With advantages of safety , high-efficiency , durability , manpower saving etc, electric hoists are widely used in industrial construction lifting , workshop lifting  , warehouse material handling , shipyard , port, mining , railway construction etc . All the electric chain hoist and wire rope hoist can be controled both by pendant cable and wireless remote , it's very convenient to use wireless remote to control hoist working at anywhere within 50m distance .



ALLMAN INDUSTRY , as a professional supplier of lifting and hoisting equipment , can provide Electric Chain Hoist from capacity 250kg up to 50 Ton capacity to the worldwide industrial lifting market. But practically speaking, electric chain hoists are more economical for capacity 0.5ton , 1ton , 2ton  3ton and 5ton . Wire Rope Hoists are more widely used for capacity up 5ton .We always do our very best to meet the customers demands by supplying only the very best quality industrial hoisting equipment considering different site situation: suspension electric chain hoist , hoist with  trolley etc.



Suspension Configuration

Electric chain hoists are available in:

· Hook mounted type , can mounted with beam trolley such as plain trolley , geared trolley .

· With electric trolley .

ALLMAN electric chain hoist overview :

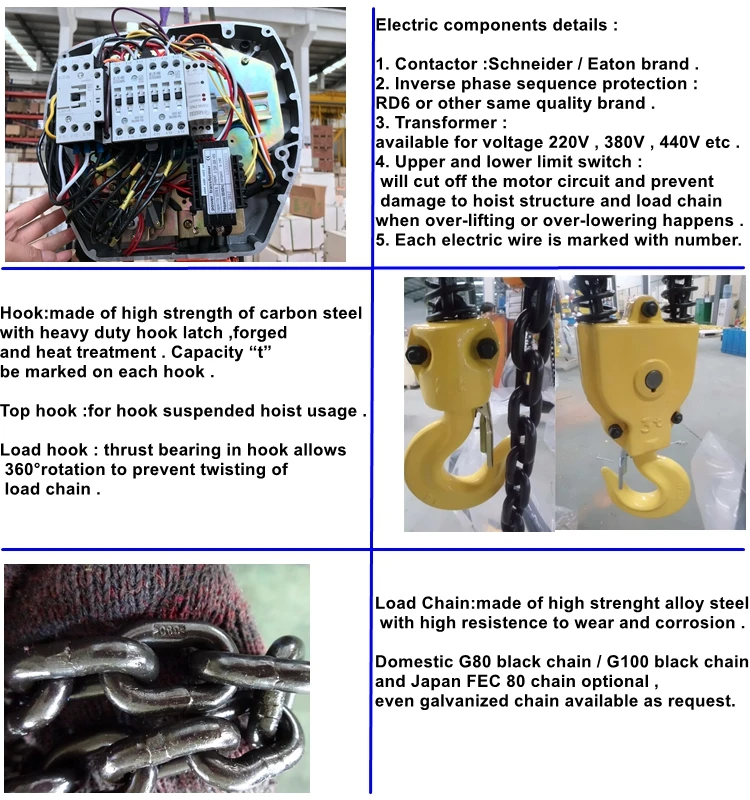

 ALLMAN INDUSTRY  Electric Chain Hoist come standard with the following features:

· Brake System : mechanical type side magnetic braking or electronic magnetic braking .

· Upper and Lower Limit Switch

· Push Button Controls

· Electric Control Panel Available and wireless remote control available for all motions

· Heavy-Duty Hoist Motor rated for 30-minute duty

· Load Sheave / Chain Guide

· Grade 80 load chain / FEC Japan chain

· Forged carbon steel hook with a heavy-duty hook latch

· Chain container

· Gear box with alloy steel helical and spur gear reduction

. Wireless remote control is optional as customer's request



ALLMAN 0.25ton  0.5ton 1ton 2ton 3ton 5ton  single speed /dual speed Electric Chain Hoist Technical Paraters :

 5t.jpg5T .jpg



Detailed Images
2ton hoist .jpg
02.jpg ALLMAN electric chain hoist with trolley packing & shipping , hoist and trolley be packed seperately :

package and shipping.png.jpg
